All Ultra-tec cable railing infill should be installed to the following specifications: Cable Spacing Center to Center = 3.125″ Maximum Unsupported Span = 48″ Cable Tension = 225 lbs
PDFs
Description
Section A

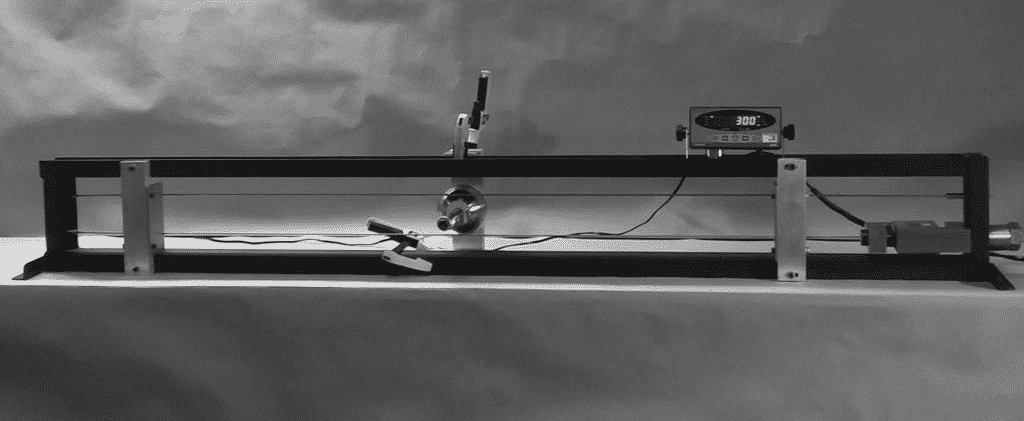

Test Results for Sphere Pass-Through Resistance
Section B
Calculations for various code diameters for pass-through resistance for 4″ sphere
Section C
Summary of Loads by Fitting
Green Building Product Information Ultra-tec® cable railing products are made of recycled materials, helping you qualify for the following types of LEED® credits:
LEED for New Construction – Material & Resources Credit 4.1 and 4.2 LEED for Commercial Interiors – Material & Resources Credit 4.1 and 4.2 LEED for Schools – Material & Resources Credit 4.1 and 4.2
Recycled Content Certification This is to certify that:
All stainless steel products produced and/or supplied The Cable Connection, Carson City, Nevada contain a minimum pre-consumer and post-consumer recycled content of 65%, with minimum post-consumer recycled content of 25%.
All other steel products produced and/or supplied The Cable Connection, Carson City, Nevada, contain a minimum post-consumer recycled content of 25%.
