The Push-Lock® is a concealed, swageless, non-tensioning, through-the-post-mounted fitting that is suitable for use on level runs only, and is available for 1/8” and 3/16” diameter 1×19 stainless steel cable.

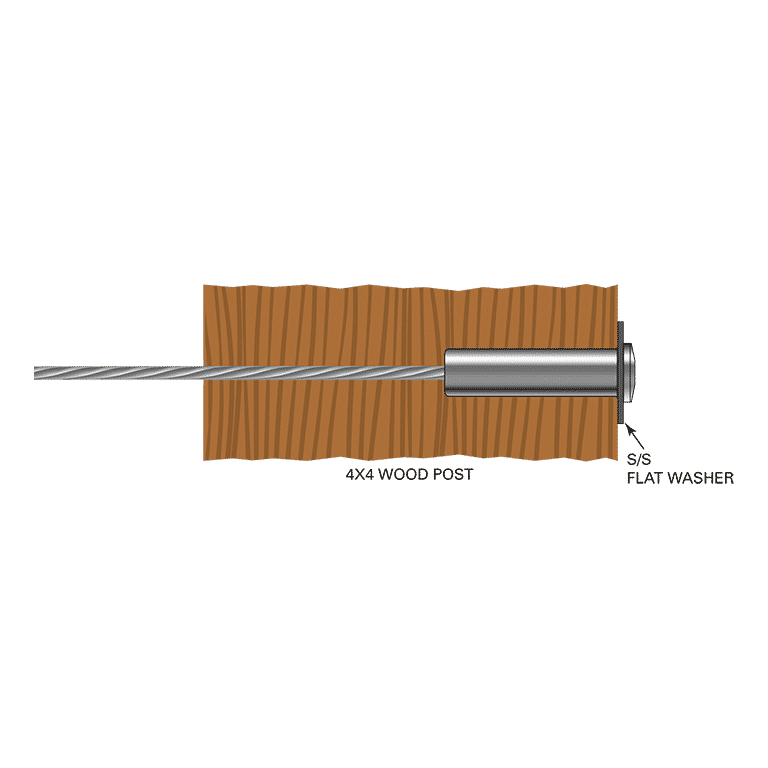

The Push-Lock® must be used with a tensioning fitting on the opposite end of the run. This fitting is installed into a pre-drilled hole in the end post. Using the Push-Lock® fitting on level runs requires that a minimum of 1-1/2” of clearance exists on the back side of the end post (to install the fitting through the back side of the post). It is also recommended that a stainless steel flat washer be installed between the shoulder of the fitting and the mating surface of the wood post. The cable attaches to the fitting via our Push-Lock® locking wedge system which requires no special tools.


This fitting is made to look similar to the Invisiware® Receiver from the exterior of the post, so it is recommended to use a Receiver with stud on the opposite end whenever practical to maintain a consistent look.

Specifications

Cable DiameterPart No.
1/8”PL-4-12
3/16”PL-6-12
