The Push-Lock® Tensioner with Threaded Clevis is an exposed, swageless, tensioning, face-of-the-post-mounted fitting that is suitable for level or pitched runs, and is available for 1/8” and 3/16” diameter 1×19 stainless steel cable. It is a more compact design than our swaged Adjust-A-Body® fittings.


The Push-Lock® Tensioner with Threaded Clevis can be used with any fitting on the opposite end of the run. This fitting consists of two separate pieces: the articulating threaded bolt and Push-Lock® tensioning body. The threaded bolt is installed into a pre-drilled and tapped hole in the end post. The cable attaches to the body via our Push-Lock® locking wedge system which requires no special tools. The machine thread of the articulating bolt threads into the body, connecting the two pieces. Tension is created by securing the post-side segment of the body onto the machine threads while preventing the cable-side segment of the body from turning.

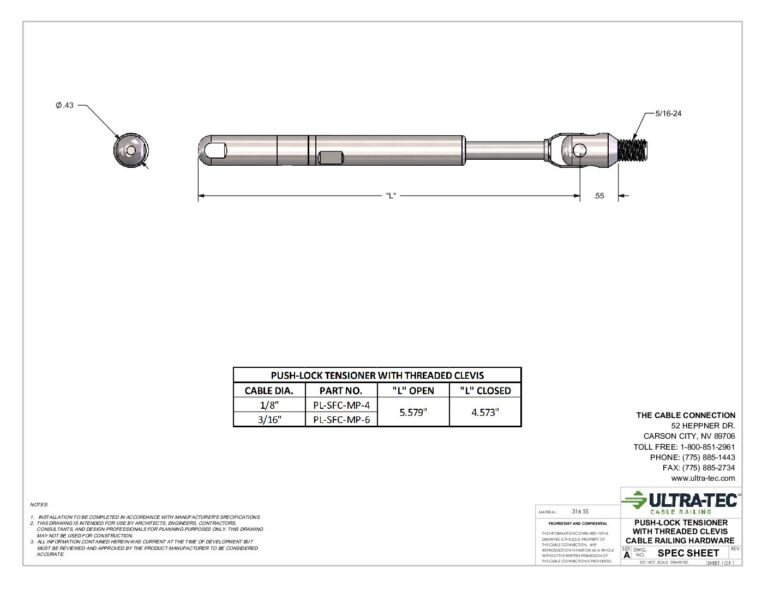

Specifications

Cable Diameter Part No.
1/8” PL-SFC-MP-4
3/16” PL-SFC-MP-6

The Push-Lock® Tensioner with Threaded Clevis is an exposed, swageless, tensioning, face-of-the-post-mounted fitting that is suitable for level or pitched runs, and is available for 1/8” and 3/16” diameter 1×19 stainless steel cable. It is a more compact design than our swaged Adjust-A-Body® fittings.


The Push-Lock® Tensioner with Threaded Clevis can be used with any fitting on the opposite end of the run. This fitting consists of two separate pieces: the articulating threaded bolt and Push-Lock® tensioning body. The threaded bolt is installed into a pre-drilled and tapped hole in the end post. The cable attaches to the body via our Push-Lock® locking wedge system which requires no special tools. The machine thread of the articulating bolt threads into the body, connecting the two pieces. Tension is created by securing the post-side segment of the body onto the machine threads while preventing the cable-side segment of the body from turning.

Specifications

Cable Diameter Part No.
1/8” PL-SFC-MP-4
3/16” PL-SFC-MP-6
